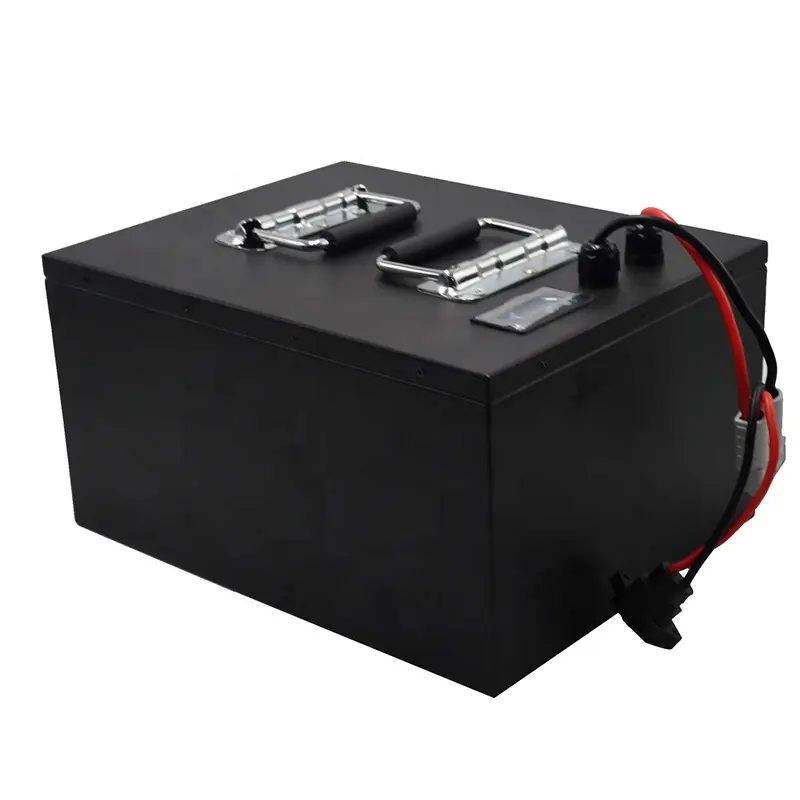

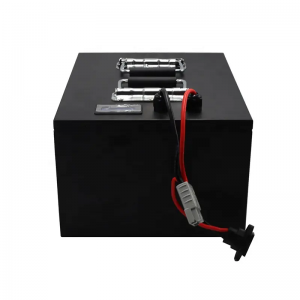

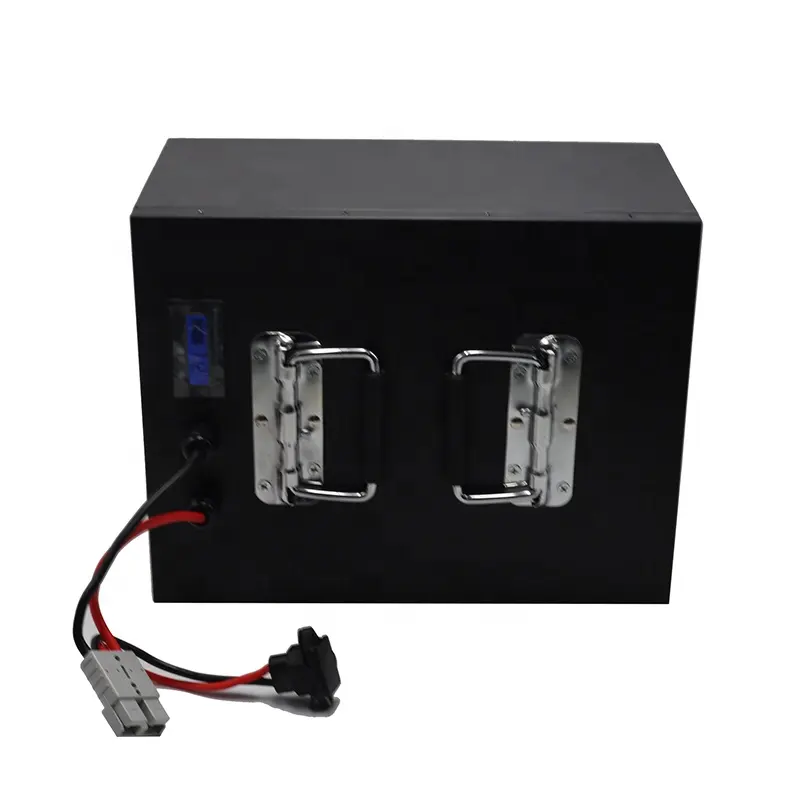

تخصيص بطارية LiFePO4 72v 60ah بطارية السيارة الكهربائية بطارية ليثيوم أيون للسيارات EV

2023-06-06 02:13

تخصيص

اسم العلامة التجارية	الكل في واحد
نموذج	AIN7260
ضمان	5 سنوات
الجهد الاسمي	76.8V
القدرة الاسمية	[email protected]/customize
طاقة	4416Wh
المقاومة الداخلية	≤50 مΩ
دورة الحياة	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
التفريغ الذاتي	≤3.5٪ شهريًا عند 25 ℃
ماكس.جهد الشحن	87.6 V
وضع الشحن	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
التيار الشاحن	30 أ
Max.Charging الحالي	60 أ
التفريغ الحالي	30 أ
Max. discharge Continuous Current	60 أ
ماكس.التيار النبضي	120A(<3S）
تفريغ قطع التيار الكهربائي	60 فولت
درجة حرارة الشحن	0 إلى 45 (32 ℉ إلى 113) @ 60 ± 25٪ الرطوبة النسبية
درجة حرارة التفريغ	-20 ℃ إلى 60 (-4 ℉ إلى 140 ℉) @ 60 ± 25٪ الرطوبة النسبية
درجة حرارة التخزين	0 إلى 45 (32 ℉ إلى 113) @ 60 ± 25٪ الرطوبة النسبية
مقاومة غبار الماء	IP55
الخلية والتنسيق	LFP  60AH 24S1P/customize
غلاف	Metal Case
البعد (L * W * H * TH)	يعدل أو يكيف
وزن	50kg
طرفية	M6 or Anderson or another bolt screw
Peak discharge current BMS	60 أ
High temp port. Low temp port.	over charge port. over discharge port.
طريقة الشحن	CC السيرة الذاتية
Terminal Type	M6 or Anderson or another bolt screw/customize
شهادة	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

تذكير

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

تطبيق

مصنعنا

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

التعبئة والشحن

التعبئة

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

الشحن

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



التعليمات

س: كيف يمكنني الدفع؟ ما هي طرق الدفع المقبولة لديكم؟
A: T/T, PayPal, Western Union.

س: هل عينة النظام مقبولة؟
ج: نعم ، بالنسبة لمعظم البطاريات ، فإن أوامر عينة لاختبار الجودة معقولة ومقبولة.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

س: ما هو الضمان الخاص بك؟
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. للضرر الناجم ، مثل انتفاخ البطارية / ملحومة ، حزمة بطارية بدون حماية BMS بسبب الشحن.
