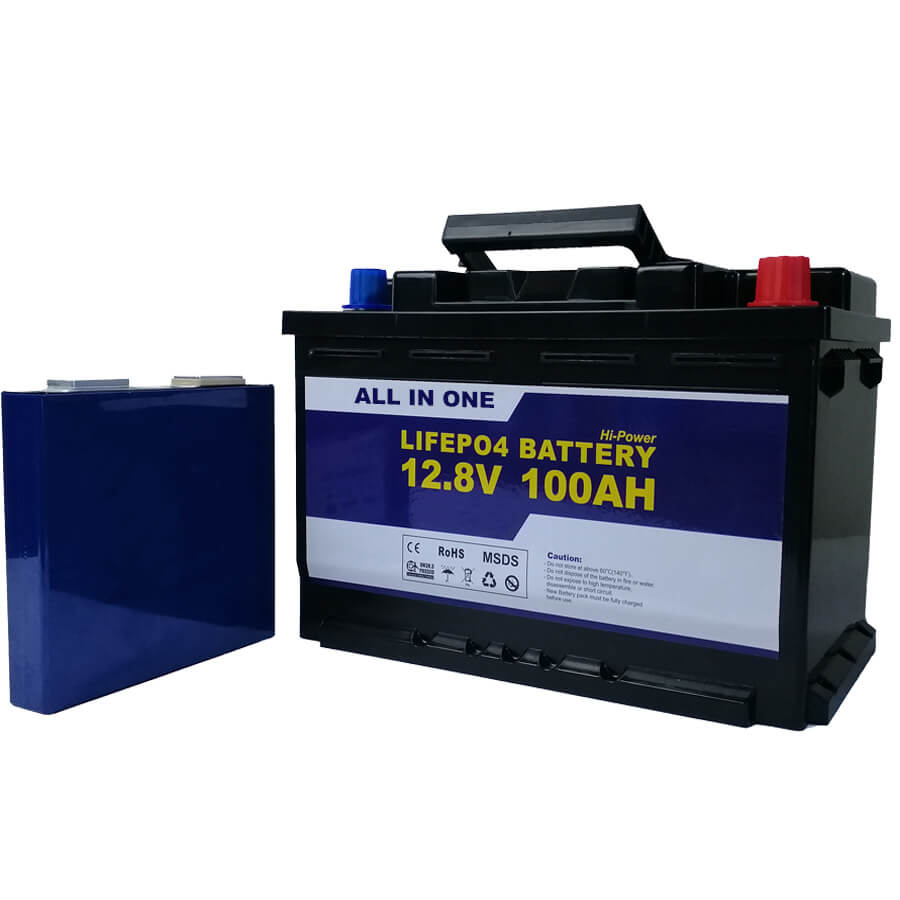

ITEMS | 12v 100ah Lifepo4 battery |
Cell ype | LiFePo4 Cells |
الجهد الاسمي | 12.8 فولت |
القدرة الاسمية | 100 أمبير |
الحماية | BMS (without communication) |
Over Discharge Protection Voltage | 14.6 فولت |
Over Charge Protection Voltage | 10.0 فولت |
أقصى تيار التفريغ المستمر | 100 أ |
الحد الأقصى لتيار تفريغ النبض | 200A (less than 5s) |
Working Temp. Range/℃ | Charge: 0℃~60℃ |
Discharge: -10℃~60℃ | |
درجة حرارة التخزين | Less than 1 year: -10℃~25℃ |
Less than 3 months: -10℃~40℃ | |
Less than 30 days: -10℃~45℃ | |
موصل | 300 pure copper connector (can be customized) |
Size(L×W×H)/mm | 305*175*195 (±5) |
Battery pack Weight | 13.5 kg |
Quality Warranty | 3 سنوات |
The data on the above is our standard matched pack. Size/max continuous discharge current/ max discharge current are adjustable based on customer's detail requirement. Different current needs different BMS, so please specify the charge/ discharge current for moudle customize, also the cost of battery pack would be slightly different based on BMS selection. |
1. A grade LiFePO4 cells with long cycle life
2. BMS built in with over charge, over discharge, over current, over temperature protection etc.
3. Sorting before batteries were assembled, to make sure every single battery pack was assembled by batteries with same Volt, capacity and resistance.
4. An idea choice for solar energy storage, electric scooter, electric boat etc.
5. Perfect to replace lead acid battery
6. Cover the battery with epoxy board before packaging, to protect battery from hit and high temperature. Epoxy board is a flame-retardant material, can prevent battery on fire or explosion.
7.All the battery pack will be cycle aging. Before we put the battery pack in to packing box or next step assembly, we charge and discharge the battery pack to text it's parameters to make sure it can work well.
8. Well trained employee,every employ will be trained for two weeks before he(or she) goes to work at production line, make sure he(or she) can complete every work program accurately. Payment Term: 30% TT in Advance, 70% balance before shipment.
بطاريات LiFePO4 ذات الصلة Our Company
Q1: هل يمكنني الحصول على عينات للاختبار؟ وما هو مهلة لعينة النظام؟
Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement. For normal in stock product,2~5 days; For customized product,3~7days depends on requirements.
Q2: ما هو الضمان للمنتجات؟
1 ~ 10 سنوات ، نظرًا لأن مجموعة منتجاتنا واسعة ، نظام تخزين طاقة حاوية بحد أدنى 12 فولت 40 أمبير ، بحد أقصى 2 ميجا واط ، منتجات مختلفة لها ضمان مختلف ، مرحبًا بكم في التحقق قبل تقديم الطلب.
Q3: ما هي ميزة شركتك؟
نحن مصنع مباشر ، لدينا خبرة غنية جدًا في تخصيص أنواع البطاريات ذات الجهد العالي والسعة العالية والأداء العالي لقوافل RV 12 فولت / 24 فولت / 48 فولت / 80 فولت ، رافعة شوكية كهربائية ، عربة الجولف ، البحرية ، AGV ، استبدال بطاريات الرصاص الحمضية ، تخزين الطاقة الشمسية المنزلية ، جرارات الطائرات 384 فولت / 460 فولت / 614 فولت ، شاحنة ثقيلة ، قطار منجم ، مصدر طاقة 110 فولت / 220 فولت تيار مستمر ، خزانة ESS ، حاوية ESS وما إلى ذلك ، يمكن أن تقدم لك أفضل دعم تكنولوجي احترافي.
Q4: هل تقبل OEM / ODM؟
نعم مرحبا!
Q5: ما هي المهلة الزمنية للنظام الشامل؟
بشكل عام ، حوالي 7 إلى 20 يومًا اعتمادًا على عناصر مختلفة بعد الحصول على دفعة أولى وتأكيد العينات.
س 6: ما هي شروط الدفع؟
الدفع عينة تقبل باي بال ، ويسترن يونيون ، الضمان ؛ والنظام الشامل عن طريق T / T.
س 7: ما هو نوع الشهادة التي يمكن أن تقدمها؟
CE ، RoHS ، UN38.3 ، MSDS ، إلخ ، إذا كنت بحاجة إلى IEC-62133 ، PSE وغيرها ، يرجى التشاور معنا.
